email thread visualization

28 June 2006

a data visualization technique that displays threads found in email. it combines the chronology of messages with the branching tree structure of a conversational thread. people can observe various attributes of conversations & find relevant messages easily.

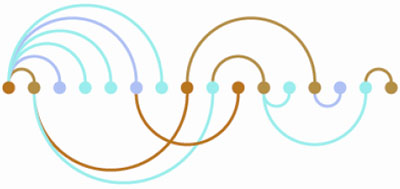

the Thread Arcs have a linear layout of message nodes connected by relationship arcs. each circular node represents a message in the thread. each arc connects each message node to its parent in the thread. colors denotes time, contributor, or image generation.
see also email content visualization & email erosion & email mountain.
[ibm.com & ibm.com(pdf)]

add to delicious.gif add to digg

aesthetic & infovis . comments (7)

recent entries

twistori twitter message filter tweetwheel twitter network viz cocovas search visualization personal profile network graphs timetube youtube video timeline silent energy consumption visualization greenpix zero-energy massive LED display Google trigram frequency visualization Diesel infographic safety video oh shiit spelling frequency information design patterns cookbook msnbc 3D live news reader average American consumer spending wifi geographical mapping

extra

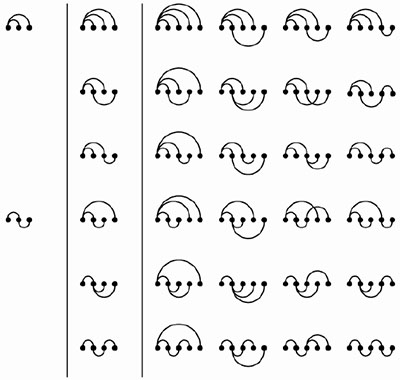

illustrations from Bernard Kerr, Thread Arcs: An Email Thread Visualization, IEEE Symposium on Information Visualization, October 2003, Seattle, Washington.
